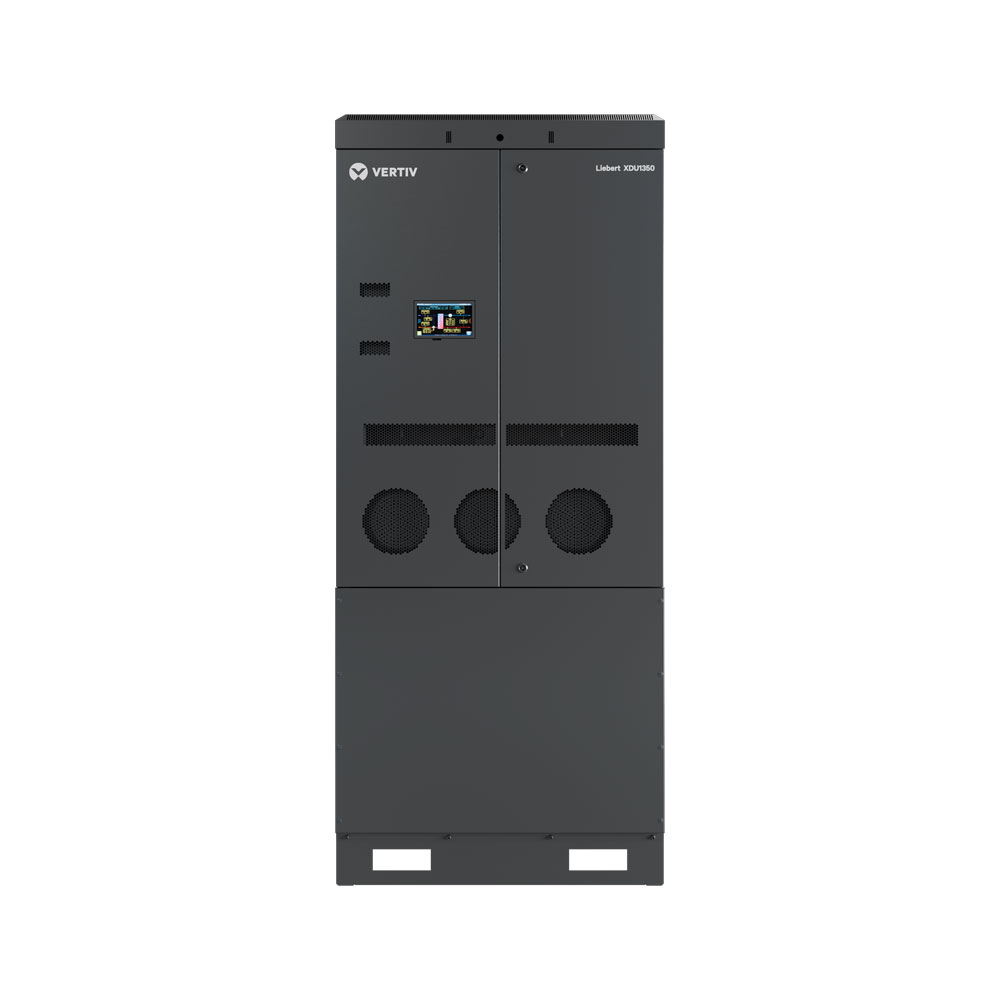

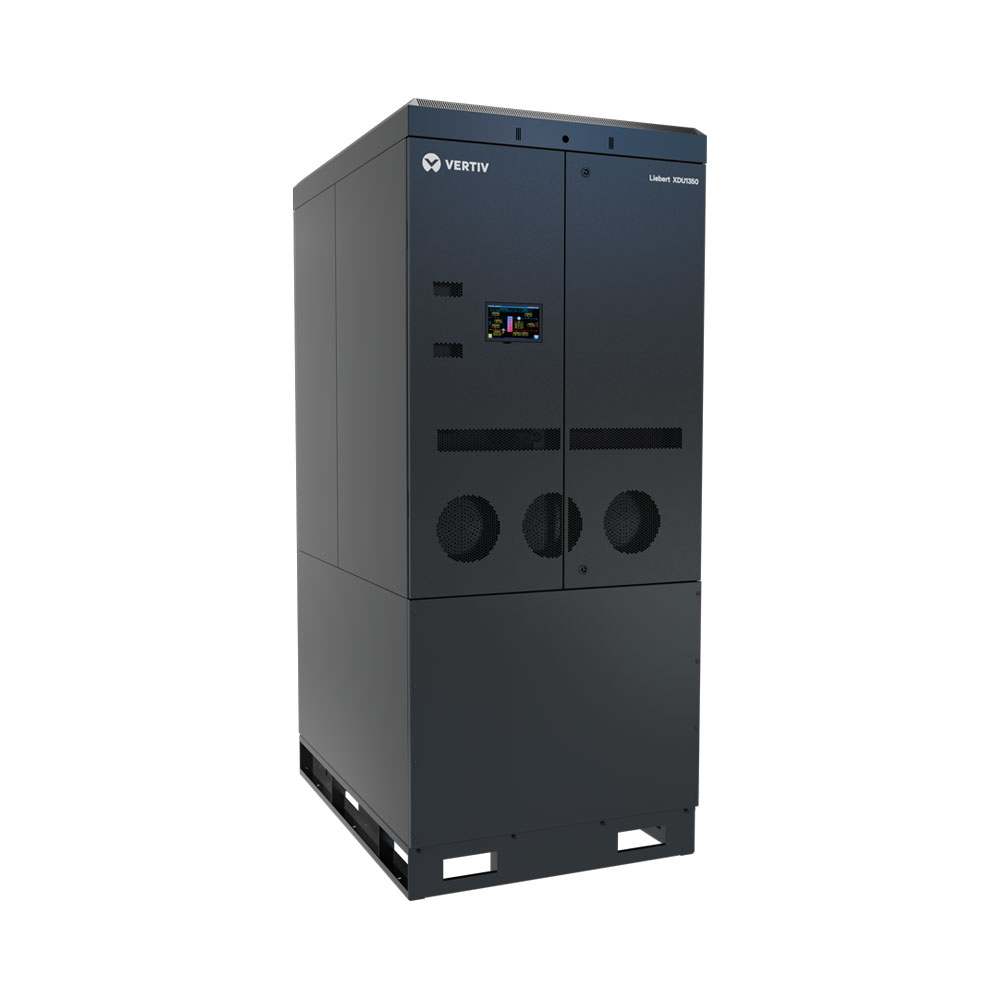

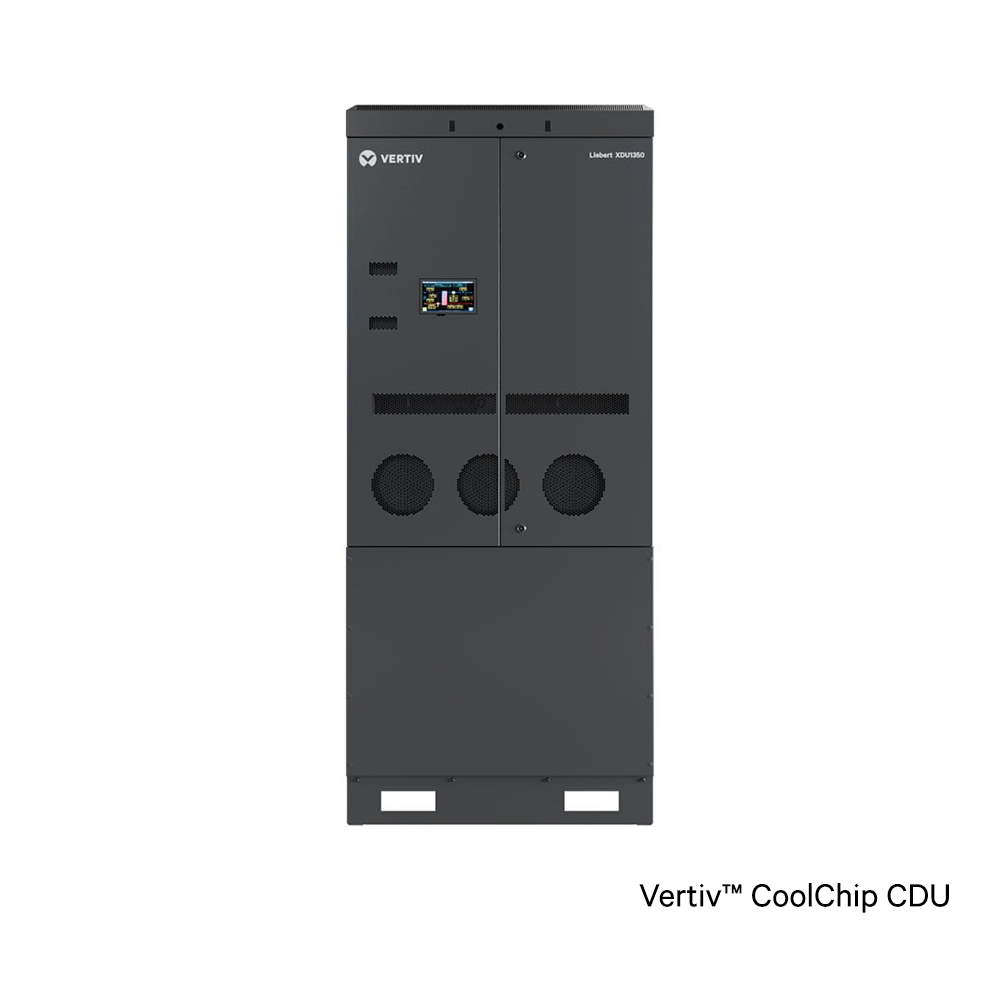

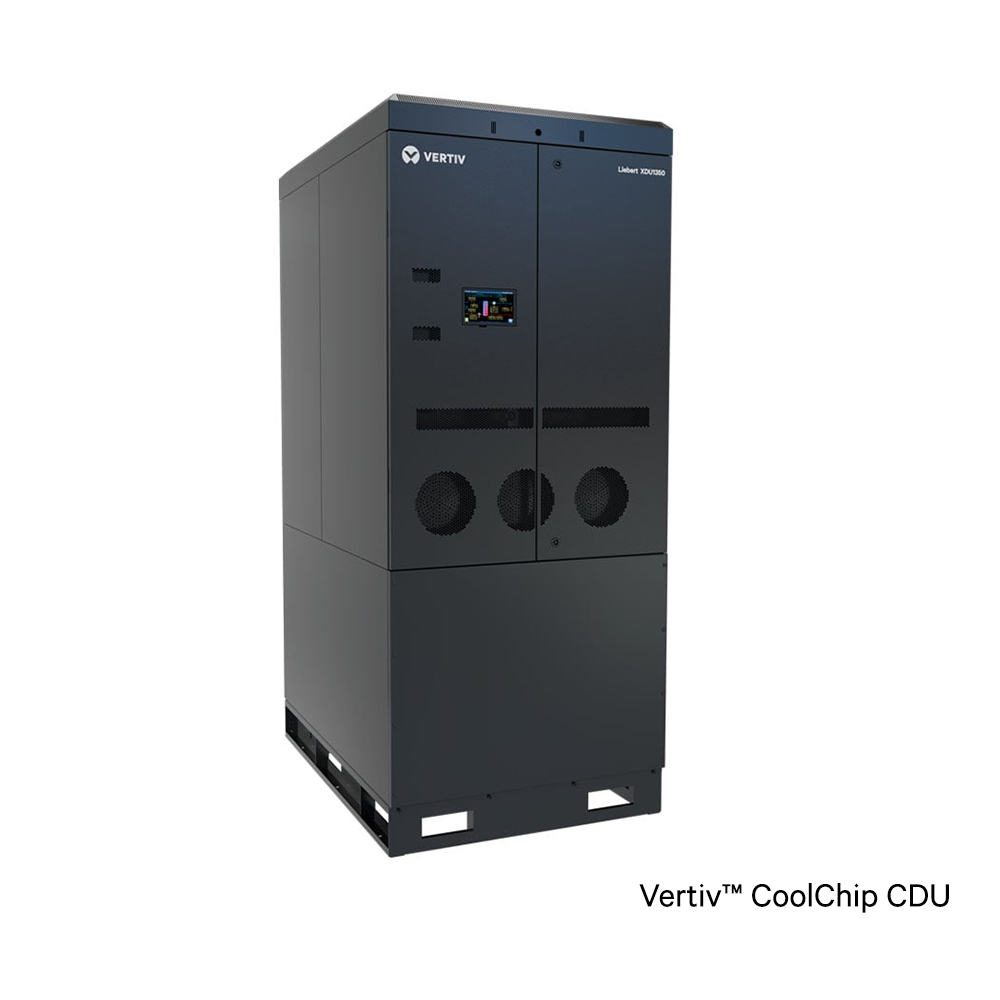

Liebert® XDU1350 Coolant Distribution Unit
Designed to remove barriers to liquid cooling in an air-cooled environment, the Liebert® XDU1350 Coolant Distribution Unit is liquid to liquid heat exchanger for chip & rear door cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU operates without facilities water, allowing you to tap into the benefits of water-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
将此产品保存到控制面板
您只需将此产品保存到控制面板，以便稍后查看。当您不再希望保存时, 您可轻松地从控制面板删除该项目。
请登录或创建一个帐户
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
Liebert® XDU1350 Coolant Distribution Unit
Designed to remove barriers to liquid cooling in an air-cooled environment, the Liebert® XDU1350 Coolant Distribution Unit is liquid to liquid heat exchanger for chip & rear door cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU operates without facilities water, allowing you to tap into the benefits of water-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
优点
特性
规格
The Vertiv™ XDU delivers flexibility to support rear door heat exchangers or direct contact liquid cooling. The Vertiv XDU’s compact footprint allows for end of row or perimeter placement. However and wherever you incorporate the Vertiv XDU, you can easily distribute coolant to efficiently manage power-dense hot spots up to 1,368 KW. Redundant pumps and power inputs ensure the Vertiv XDU is always doing its job while smart settings and teaming options ensure the precise temperature, flow rate, and pressure are continuously maintained to cool your IT environment as effectively and efficiently as possible. The stainless-steel wetted material provides peace over corrosion concerns. A built-in 50-micro filtration unit works around the clock to keep the secondary fluid network free from debris and contaminants that could hinder performance. Remote Monitoring is available through HTTP, SNMP, RS-485 Modbus, Modbus IP communications. The integrated controller provides accurate performance setpoints, flow control and monitoring with integrated leak detection and operational alarm features to help maintain system and efficiency.
*要查看特定型号的下载，您需选择上方规格图表中的型号名称，以转到特定型号的产品页面。
